Brushing

From a data mining perspective we are usually most interested in the relationship between the values of the variables for observations for which it does or does not rain tomorrow (using the variable RainTomrrow). We can have these two different values highlighted in different colours very easily. From the Tools menu we can choose Automatic Brushing to have the window shown in Figure 7.7 displayed.

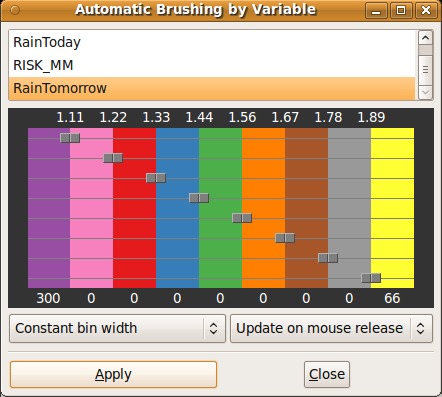

Figure 7.7: GGobi's automatic brushing.

From the variables list at the top of the resulting window choose RainTomorrow after scrolling down through the list. Notice that the number ranges in the lower colour map change to reflect the range of values associated with the chosen variable. For RainTomorrow which has only the values 0 and 1, any observations having RainTomorrow as $0$ will be coloured purple, whilst those having it as $1$ will be coloured yellow.

We click on the Apply button for the automatic brushing to take effect. Any plots that GGobi is currently displaying (and any new plots we cause to be displayed) will colour the observations appropriately, as in Figure 7.8. This colouring of points, across multiple plots, is referred to as brushing.

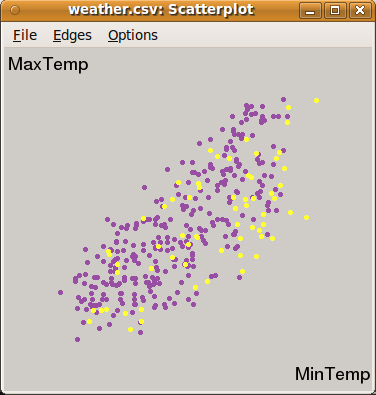

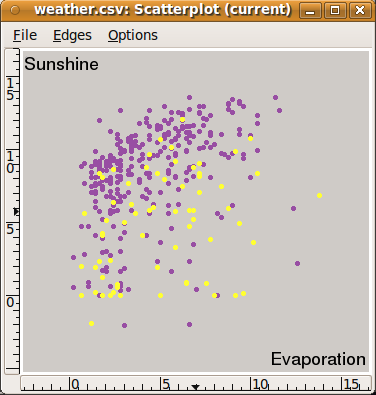

Figure 7.8: Automatic brushing of multiple scatterplots using GGobi.



Our plots can be somewhat more colourful by choosing a numeric variable, like Sunshine, as the choice for automatic brushing. We can see the effect in Figure 7.9.

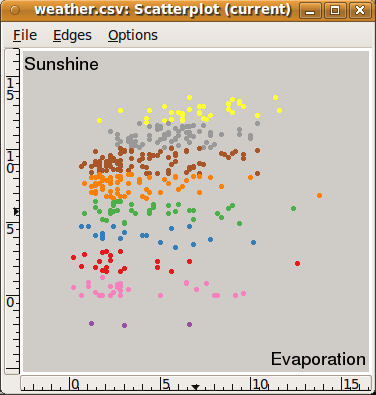

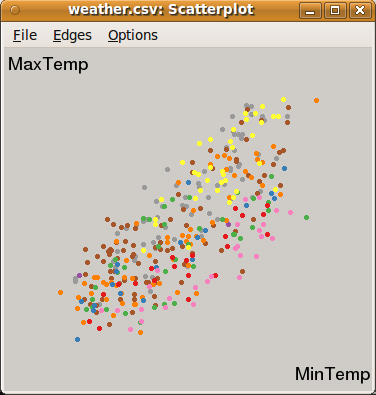

Figure 7.9: Colourful brushing of multiple scatterplots.
