34.3 Glade Walkthroughs

34.3.1 Building the GUI

We will use a simple application to illustrate glade in action. Our sample GUI will be for a tool to count the number of lines, words and bytes in a file—nothing complex but suitable for demonstration.

34.3.1.1 The Glade Windows

Start glade from the Programs\(\rightarrow\){Development} menu of the GNOME desktop (or else use Ctl+F2 and then type in glade to start the application). You will see three new windows popup. These constitute the glade interface.

{#fig:glade-startup}

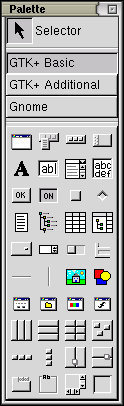

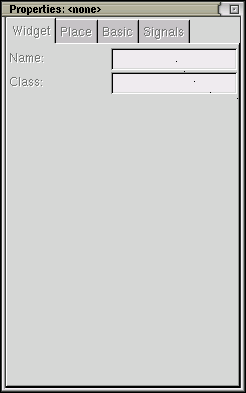

The left most window above is the main glade window which will list the windows and dialogs of your own project. Currently it is empty. The middle window is the Palette window from where you choose the user interface widgets to include in your interface. The right window is the Properties window where you can edit the properties of each widget such as its size, behaviour, and signals it responds to. There are two other glade windows not shown but which can be displayed by selecting them from the main window’s View\(\rightarrow\){Show Widget Tree} and View\(\rightarrow\){Show Clipboard} menus. We will see them later.

34.3.1.2 Project Options

Our first task is to start a project by editing the Project Options through the Options button of the main glade window (or else through the File\(\rightarrow\)Project Options menu). By default the Project Directory listed is set to /home/guest/Projects/project1 (where guest is the current username—it will be your username in your case). In the figure on the right the user has edited this to replace the default project1 sub-directory with gwords—a more descriptive name for this application. Note that the Project Name, Program Name and Project File have automatically changed to reflect the change in the Project Directory. We will leave these defaults as they are since they represent good choices. See Section 34.4.4 for details.

The remaining options we won’t change either. Again they are generally good choices. Note in particular though that we have the option turned on. You can take a look at the other two option tabs, C Options and LibGlade Options, to get an idea of what else you can configure (see the Reference sections later for details). When satisfied simply click the OK button. The main glade window’s title will have changed to be *Gwords*,' the name of our application, replacing the previous\(<\)untitled\(>\).’

34.3.1.3 The GNOME Application Window

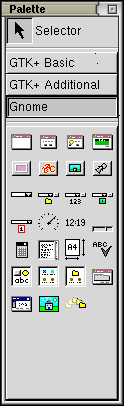

Now we are ready to start building our GNOME interface. We first need to create our main GNOME Application Window which will be the window displayed when our application starts up. Select the GNOME button of the Palette window to display in the palette the GNOME widgets (which are extensions to the GTK Basic widgets which are displayed by default). Identify the GNOME Application Window widget by hovering the mouse over the various widgets to display their tool tips. It is the top left widget in the palette. Simply click on it with the left mouse button to create one.

There are many other widgets available on this GNOME palette. They include dialog boxes, message boxes, a standard GNOME About Dialog, file entry field with a browse button, a pixmap entry field with built-in preview, and a druid. We’ll see some of these later and % all of them in the reference sections. For now we simply create the GNOME Application Window.

You will be presented with a new window that has many of the characteristics of a GNOME application window. There is the menu bar along the top with the usual File, Edit, View, Settings, and Help menus, most including standard menu items within them. This is followed by the default toolbar with the New, Open, and Save buttons. Below this is the canvas area where you will construct your interface. At the bottom is the status bar and a progress monitor. Note that not all menus and toolbar buttons will be useful for your application and you will have others in mind that you may wish to add. Feel free to click around the window and see the menus by clicking the menu twice—once to select the menu itself then once to open up the menu to show its sub-items. Also note how widgets are identified in the Properties window as you select the widgets.

34.3.1.4 Adding Widgets

For now let’s ignore the excess of decoration. Instead we will build the basic interface components. There’s not much that we need in the interface. Certainly we need to identify the file to be word counted. Also we want to identify whether to just count the words or also the lines and bytes.

We go back to the GTK Basic palette for one of the layout widgets. These are towards the bottom of the palette—third row from the bottom in fact. Hover the mouse over each of them to find the Horizontal Box, Vertical Box, Table, and Fixed Positions. Click on the Vertical Box layout. Now on the central canvas area of your Gwords interface click the left mouse button. You will be asked for the number of rows for your box—the default of 3 will do for now so just click on the OK button. Your canvas will be divided into 3 rows. Each one of the 3 rows can now be constructed independently—each can contain a different widget, including further layout widgets. %

We will use the first row to identify the name of the file whose contents we will be counting. We will use a file entry box to allow for the entry of the filename. We will also add a label so that we know what the file entry box is for. That means two widgets and all we have is a single row—so we need to add a Horizontal Box with two columns. Find the Horizontal Box on the GTK Basic palette, click it with the left mouse button and then click in the top row of the three rows of our canvas. When prompted select just 2 (rather than the default 3) columns for this Horizontal Box.

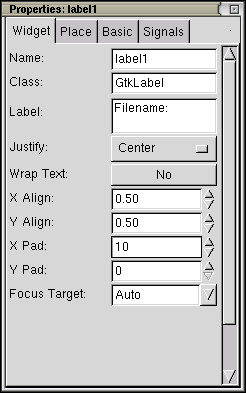

Labels should probably go to the left of the entry box so we will place the label first. Select the Label widget from the GTK Basic palette—the first item on the second row. % Now click in the top left box of our canvas (this is the left most of the two cells we have just created). A GtkLabel widget should now appear with the label label1 (and some resizing of the cell might occur). This is now our first real'' widget. Of course we don't want the label to read `label1` (even though we might leave its name---as distinct from its label text---as `label1` for now). We can change the label text through the *Properties* window where you will find the fields relevant to this widget (assuming it is still the selected widget). Change the *Label* field to beFile:' (replacinglabel1`). For good measure set the X Pad field to be 10 (so that the widgets won’t look so cramped). You will see the effect of these immediately. %%

To summarise so far. A basic GNOME Application Window has been created with the default menu bar and toolbar and a at the bottom. We have added a 3 row Vertical Box and in the top row of this a 2 column Horizontal Box. In the resulting top left cell we have added a Label widget and changed the text to be `File:.’ It also has its X Padding set to 10 to give a less cramped layout.

34.3.1.5 Removing Widgets

You can remove widgets easily through the menu on the right mouse button. First click on a widget with the left mouse button to select it. The right mouse button will then list the actions you can perform on this widget, including cut and delete. Note also the list of `parent'' widgets all the way up to the root widget which is calledapp1`. Before proceeding let’s explore this widget pathway in a little more detail.

34.3.1.6 The Widget Tree

All widgets in an interface are organised into a tree viewable directly through the View\(\rightarrow\){Show Widget Tree} menu of the main window. When a widget on your canvas is selected the right mouse button menu allows you to view the path up the tree from this selected widget to the root widget. The path from the filename label (label1) above consists of hbox1, vbox1, dock1, and finally app1. Each of these have submenus from which you can choose to perform actions on those widgets. For example, if you delete vbox1 then that widget and all of its children will be deleted from the canvas—so be careful!

We can see the Widget Tree window expanded above. Thus, app1 contains dock1 which is made up of three sub-components: dockitem1 contains the menu bar; dockitem2 contains the toolbar; and vbox1 is the Vertical Box that we added above. The Widget Tree window provides an alternative mechanism for selecting widgets.

34.3.1.7 GNOME File Entry

Now we add the widget for entering the filename. The one we will use is the one provided by the GNOME palette. We could use the text entry field of the GTK Basic palette and add a Browse button ourselves, but the GNOME palette GNOME File Entry widget does it all for us, and more. Click on this widget in the palette then click in the top right cell of your canvas. The browse button might look a bit strange (stretched out) but don’t worry, it will sort itself out!

You can save the work you’ve done so far by clicking on the Save button of the main glade window (not the Save button of the window you’re working on though!). Then, for fun, open the project again—load /home/guest/Projects/gwords/gwords.glade. Then, on the main glade window double click the app1 widget. You may like to change the Border Width property of fileentry1 to be 10 (using the Properties window after selecting the file entry widget in the canvas). This makes it appear less cluttered.

34.3.1.8 Tooltips

Where possible you should think about tooltips—those small popup frames that appear while you hover the mouse over some item and contain useful information about the item. Tooltips provide the basic reminders that help the user ignore the application’s written documentation. Tooltips should be just a little verbose, perhaps taking up 3 or 4 lines of text. Aim to inform with the minimum number of words.

You add tooltips to widgets by first selecting the widget. Select the text area of your fileentry1 widget—this will select something called combo-entry1 which is contained within the GNOME File Entry widget. Then in the Properties window click on the Basic tab. On that page you will see the Tooltip text entry about halfway down. Simply type in the required text, such as:

Now hover the mouse over the file entry field on your canvas and the tooltip should pop up.

An interesting question is whether the tooltip should be associated with the file entry field as we have done or with the label of the field, or both? The answer is left as an exercise for the reader! We prefer to associate the tooltip with just the entry field itself since that is where the mouse will be hovering while you are thinking about it. On the other-hand glade’s own interface associates the tooltips with the labels.

34.3.1.9 Check Buttons

We will now add a label and 3 check buttons to the next row of our canvas. This will be used to indicate what we want counted: words, lines, and bytes. So we need space for 4 widgets which we achieve with the Horizontal Box widget of the GTK Basic palette. When prompted change the default 3 columns to 4 columns.

Add a Label to the first cell of this row and change the text of the label to `What to count:.’ This label is called label2 in our collection of widgets. You may like to set the X Pad field to 10.

Now add a check button for Words' in the next cell of this row. The check button widget is the third widget of the third row of the *GTK Basic* palette---the third row contains 4 different types of buttons. Select the *Check Button* from the palette with the left mouse button then click the left mouse button in the second cell of the second row of your canvas. This creates a new widget calledcheckbutton1. Change the *Label:* text field in the *Properties* window for this new checkbutton to read ``Words.’ Similarly add check buttons for Lines`' andBytes`.’ That is, select the Check Button on the palette again then click in the next cell of your canvas. Note that after you place a widget on your canvas the selected widget button on the palette becomes in-active and the left mouse button reverts to being used for selection.

By default we will only count words so the Words button should be on by default. This is easily achieved by editing the widget properties. Select the Words button on your canvas. Then in the Properties window under the Widget tab click on the button that says No alongside the Initially On label. This will change this property’s button to be indented and to read Yes and the corresponding check button on your canvas is now also turned on.

Also add tooltips for each check button, selecting each of the check buttons, in turn, and adding text to the Tooltips field of the Basic tab of the Properties window.

34.3.1.10 Removing a Row

We now realise that we didn’t really need 3 rows for vbox1. Two are sufficient. Select the third row. You may notice that the Properties window goes blank and from the right mouse button menu this row of our canvas is nothing more than a Placeholder. The right mouse button menu Delete will remove it for us. You could put it back anytime (or indeed place any row within vbox1) through the right mouse button menu. Select any widget within vbox1 (e.g., the Words check button checkbutton1) and then with the right mouse button traverse the menu to select vbox1\(\rightarrow\){Insert After}.

34.3.1.11 Editing the Toolbar

The Run and Stop Buttons and the on_run_button_activate callback.

34.3.1.12 Editing Menus

We will now tidy up the menus, removing those that don’t apply, and adding a new one to perform the actual word count.

34.3.1.13 Adding an About Dialogue

34.3.1.14 File Not Found Dialogue

34.3.1.15 Display Results

After the words, lines, and bytes have been counted we will write the results to the Status Message area of the at the bottom of the window.

34.3.1.16 Running Your Interface

You can now run your interface, even though you have yet to write the code to perform the counting. Each of the following walkthroughs begins with the minimum required to run the interface without any actions behind it. You’ll want to give this a try just to make sure you can!

34.3.2 Building the C Code

Once you have your basic user interface constructed tell glade to save the project (using the Save button—this updates the file that contains the XML description of the interface) and then to build the project (using the Build button).

Start up a terminal window, such as the gnome-terminal, and change to the project directory. There you should see an executable file called autogen.sh. This shell script takes care of the initial configuration of your package, running automake to automatically generate the appropriate support files for the configuration. It also runs the appropriate automake components leaving you with a collection of Makefiles.

$ cd Projects/gword
$ ./autogen.sh
**Warning**: I am going to run `configure' with no arguments.
If you wish to pass any to it, please specify them on the
`./autogen.sh' command line.

processing .
deletefiles is
Creating ./aclocal.m4 ...
Running gettextize...  Ignore non-fatal messages.
You should update your own `aclocal.m4' by adding the necessary
macro packages gettext.m4, lcmessage.m4 and progtest.m4 from
the directory `/aclocal'
Making ./aclocal.m4 writable ...
Running aclocal  -I macros ...
Running autoheader...

...

creating Makefile
creating macros/Makefile
creating src/Makefile
creating intl/Makefile
creating po/Makefile.in
creating config.h
Now type `make' to compile the package.

You can now simply run the make command to perform the compilation (making use of the generated Makefiles). Once completed, run the command src/gword to start up your application.

$ make
$ src/gword

And that’s all there is to it.

34.3.2.1 The GNU Package Management Tools

The first time you build the project all of the necessary files and sub-directories are created. From then on each time you build only the relevant files that need to be changed as a result of changes in the interface are modified.

glade generates all the necessary files to be GNU compliant and to essentially run your application immediately (although without any callbacks the application won’t do much). The primary location for your C source code is in a subdirectory called src. In there you will see 3 header files (support.h, interface.h, and callbacks.h) and 4 source files (support.c, interface.c, callbacks.c, and main.c). Of these you should never edit support.h, support.c, interface.h, and interface.c. The first pair contain code that glade supplies to support your application and the latter two are the actual interface code. glade manages these files. You will be making changes primarily in callbacks.c to add the code for each callback. glade will add new callbacks to the bottom of callbacks.h and callbacks.c.

Now that you have built your interface (perhaps without any callback code just yet) you are in a position to configure, compile and run your application. The GNU automake and autoconf packages are used to simplify the management of the configuration, compilation, and installation of your application. These packages are a great help in the task of managing software projects.

Discuss the files generated by the build and how they conform to the GNU Standards.

34.3.2.2 Counting the Words

Now on to the code to actually do the word count and the appropriate callbacks.

To recompile we simply run make again, either directly in the src directory or else in the gword directory.

34.3.2.3 Packaging For Distribution

Describe the make dist and make dist-check functionality.

34.3.3 Using Libglade C

34.3.3.1 Counting the Words

34.3.4 Using Libglade with Python

Using libglade with python is an excellent option for rapid prototyping and even build full strength applications. Like the use of libglade in C there is never any need for you to convert the .glade file (containing the XML description of the interface) into Python code. Instead, libglade reads the XML and directly builds the interface using the libglade library (written in C but with an interface for Python).

The basic code is:

#! /usr/bin/env python

import gtk
import libglade
import gnome.ui

def init_app ():
    "Initialise the application."
    global wTree
    wTree = libglade.GladeXML ("gwords.glade", "app1")
    dic = {"on_quit_button_clicked"        : gtk.mainquit,
           "on_exit1_activate"             : gtk.mainquit}
    wTree.signal_autoconnect (dic)

def main ():
    init_app ()
    gtk.mainloop ()

if __name__ == '__main__': main ()

Here we have linked the interface callback on_exit1_activate to the library callback gtk.mainquit. The on_exit1_activate is associated through glade with the Exit menu item and is supplied by default by the GNOME Application Window.

Save this code into a file called gwords.py in your /home/guest/Projects/gwords directory. Make the file executable with chmod u+x gwords.py. Then run the program with ./gwords.py. Your interface should come to life.

Problems arise if you don’t have the appropriate packages installed. At a minimum make sure you have python-gnome installed (this package will depend on various other python and gnome packages which should be automatically installed by choosing to install python-gnome if you are using Debian).

You may also need to ensure that the PYTHONPATH environment variable includes the GNOME and GTK modules, but check this only if you have problems running your Python program.

34.3.4.1 Counting the Words

Now we need to write some code to perform the counting of the words. This will not be much of a challenge though as we’ve already got the logic of the algorithm under control! Its now just a task of knowing the appropriate syntax.

---
